st.latex

Display mathematical expressions formatted as LaTeX.

Supported LaTeX functions are listed at https://katex.org/docs/supported.html.

Function signature[source]
st.latex(body, *, help=None)
Parameters
body (str or SymPy expression)	The string or SymPy expression to display as LaTeX. If str, it's a good idea to use raw Python strings since LaTeX uses backslashes a lot.
help (str or None)	A tooltip that gets displayed next to the LaTeX expression. If this is `None` (default), no tooltip is displayed. The tooltip can optionally contain GitHub-flavored Markdown, including the Markdown directives described in the `body` parameter of `st.markdown`.

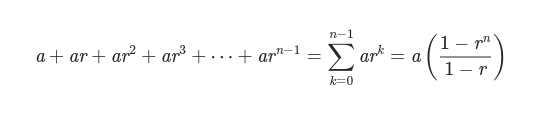

Example

import streamlit as st

st.latex(r'''
    a + ar + a r^2 + a r^3 + \cdots + a r^{n-1} =
    \sum_{k=0}^{n-1} ar^k =
    a \left(\frac{1-r^{n}}{1-r}\right)
    ''')

Previous: st.echo Next: st.text
